Specifications: BEKS-S1512C/380
Note: 380mm head spacing is standard. Other sizes (450 & 520) available by special order.
Needles: 15
Stitch Type: Lockstitch
Stitch Length: 0.1 - 12.7mm (without jump); virtually unlimited (with jump)
Trimmers: Cut top and bottom thread
Sewing Speed: 200-1000 spm (standard frames); 200-800 spm (cap & sleeve frames)
Media: USB Memory Stick (stores 5,000 designs in up to 50 folders)
I/O: LAN and COM Standard

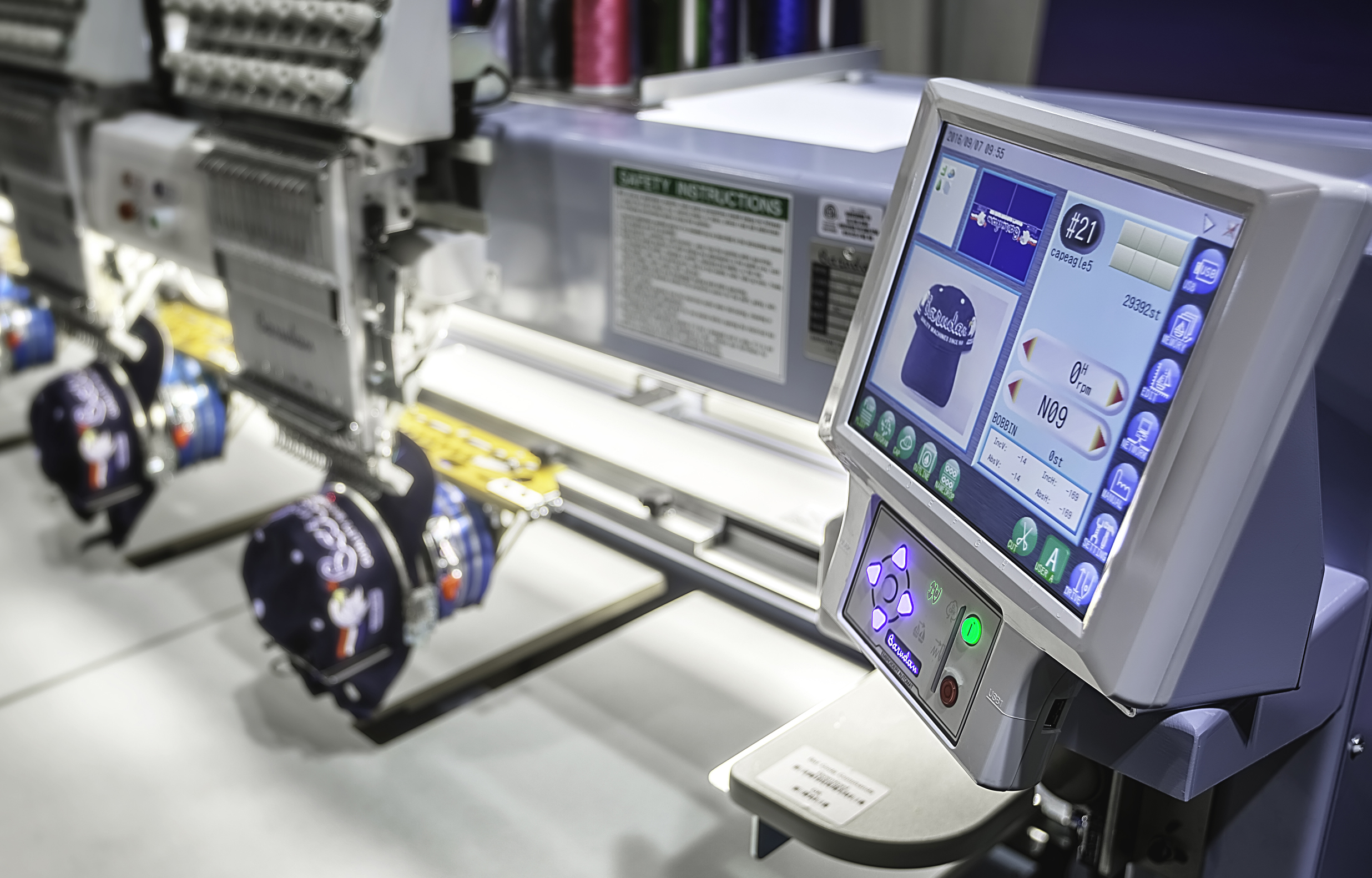

Display: 10.4" Touch Color LCD
Standard Power: [3P] AC200-240V
Optional Power: [3P] AC200-415V
Consumption: 1.5 (kW)
Rating: 2.5 (kVA)
Dimensions & Weight - BEKS-S1512C/380
Model: BEKS-S1512C/380
Sewing Heads: 12
Needle Distance: 380 mm
Sewing Field: 450x380 mm (Approximately 17½ x 14¾ inches)
Machines Dimensions & Weight:
6370L x 1335W x 1820mm
251L x 54W x 72H inches
Net Weight: 3099 kg, 5170 lbs
Shipping Dimensions & Weight:
6452L x 1245W x 1930H mm
254L x 49W x 76H inches
Crated Weight: 2994 kg, 6600 lbs
Specifications: BEKS-S1515C/380
Note: 380mm head spacing is standard.
Needles: 15
Stitch Type: Lockstitch
Stitch Length: 0.1 - 12.7mm (without jump); virtually unlimited (with jump)
Trimmers: Cut top and bottom thread
Sewing Speed: 200-1000 spm (standard frames); 200-800 spm (cap & sleeve frames)
Media: USB Memory Stick (stores 5,000 designs in up to 50 folders)
I/O: LAN and COM Standard
Display: 10.4" Touch Color LCD
Standard Power: [3P] AC200-240V
Optional Power: [3P] AC200-415V
Consumption: 1.5 (kW)
Rating: 2.5 (kVA)
Dimensions & Weight - BEKS-S1515C/380
Model: BEKS-S1515C/380
Sewing Heads: 15
Needle Distance: 450 mm
Sewing Field: 450x450/380 mm (Approximately 17½ x 14-3/4 inches)
Machines Dimensions & Weight:
7510L x 1335W x 1820H mm
296L x 54W x 72H inches
Net Weight: 3112 kg, 6858 lbs
Shipping Dimensions & Weight:
1727H x7569L x 1245W mm
68H x 298L x 49W inches
Crated Weight: 7590 lbs
